ESD / static-control flooring · Sydney & NSW
Certified ESD floors that pass on handover — not just look the part.
Conductive and static-dissipative epoxy systems for data centres, electronics, cleanrooms and defence. Designed to a measured target, properly grounded, and resistance-tested with documented proof. Operating since 2013.
Most ESD floor failures aren’t the coating — they’re the spec.
A floor that looks right but tests outside range puts your equipment, compliance and insurance at risk. Atlas designs each system to a measured resistance target, installs a proper earthing network, and tests the finished floor so you have documented proof it performs.
| System | Resistance to ground | Typical application |
|---|---|---|
| Conductive | ≤ 1.0 × 106 ohms | Munitions, explosive atmospheres, high-sensitivity electronics |
| Static-dissipative | 1.0 × 106 – 1.0 × 109 ohms | Data centres, electronics assembly, labs, cleanrooms |
Both ANSI/ESD S20.20 and IEC 61340-5-1 cap resistance-to-ground below 1.0 × 109 ohms and require personnel body voltage under 100 V. We design to the right range for your program — not a generic default.
Built for static-sensitive environments
The same floor isn’t right for every room. We match the system to your standard and your traffic.

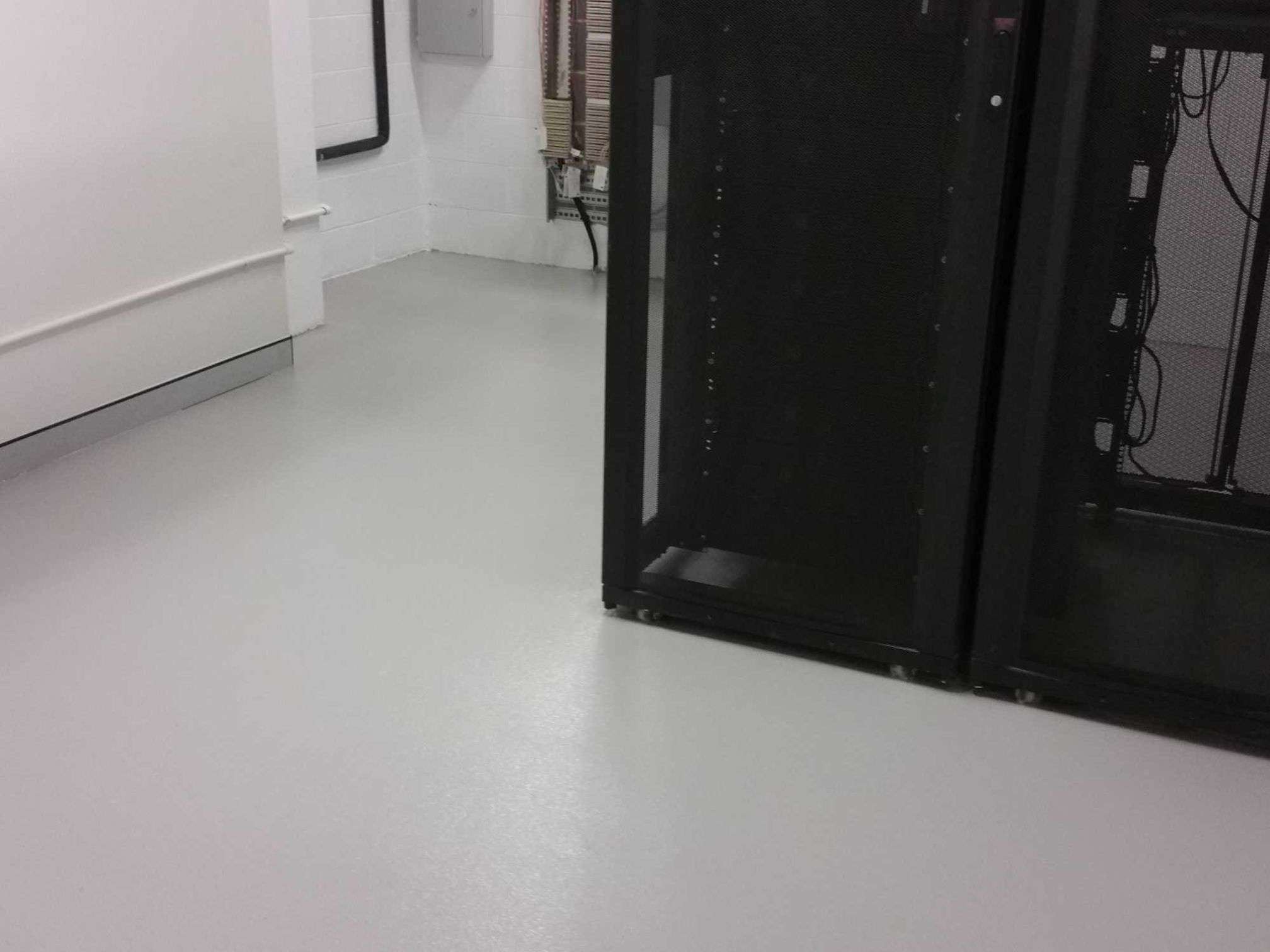

Data Centres & Server Rooms
Seamless, dust-free dissipative systems for high-density, mission-critical rooms and heavy rack & trolley loads.

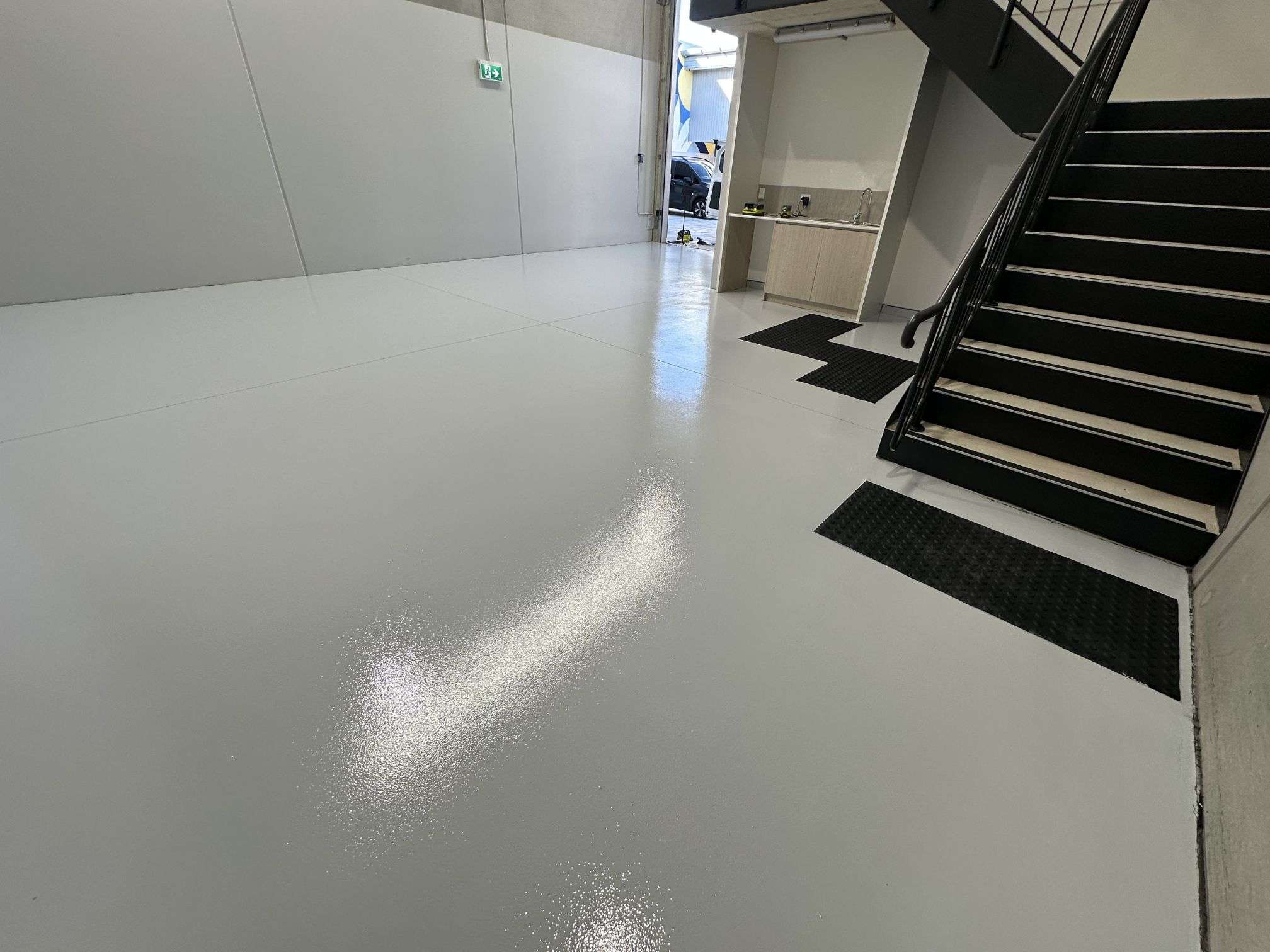

Electronics & EMS
Assembly, SMT and test areas kept inside ESD-Protected-Area spec, line-wide.
Pharma & Cleanroom
Low-VOC, seamless, easy-sanitise systems with coving for hygiene-critical spaces.
Defence & Hazardous
Conductive systems for explosive-atmosphere and ordnance handling.
Battery, EV & Energy
Static control for cell handling, BESS and EV production where ignition risk is real.
Telecom & Switch Rooms
Comms rooms, AGV floors and control centres needing reliable dissipation.

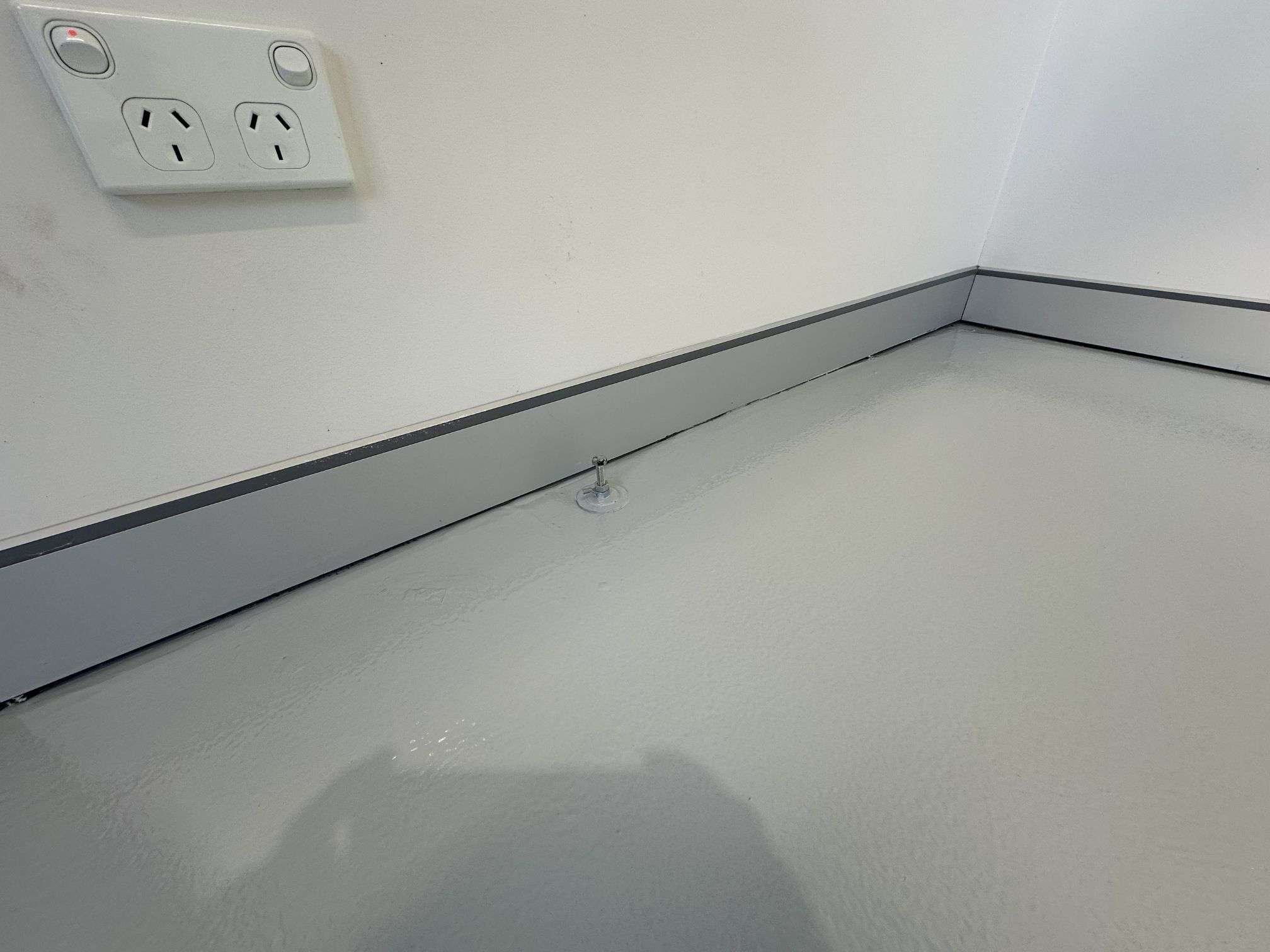

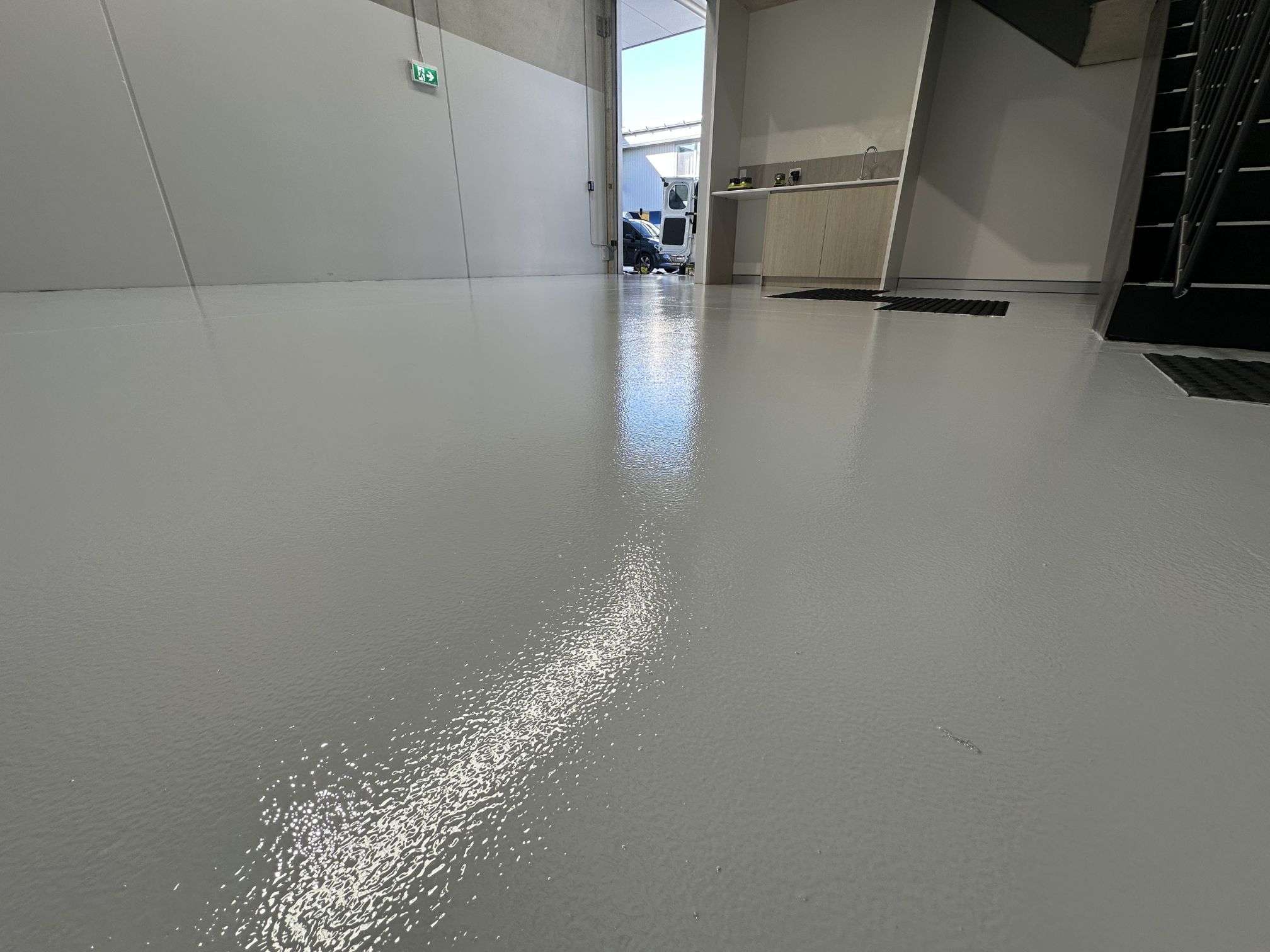

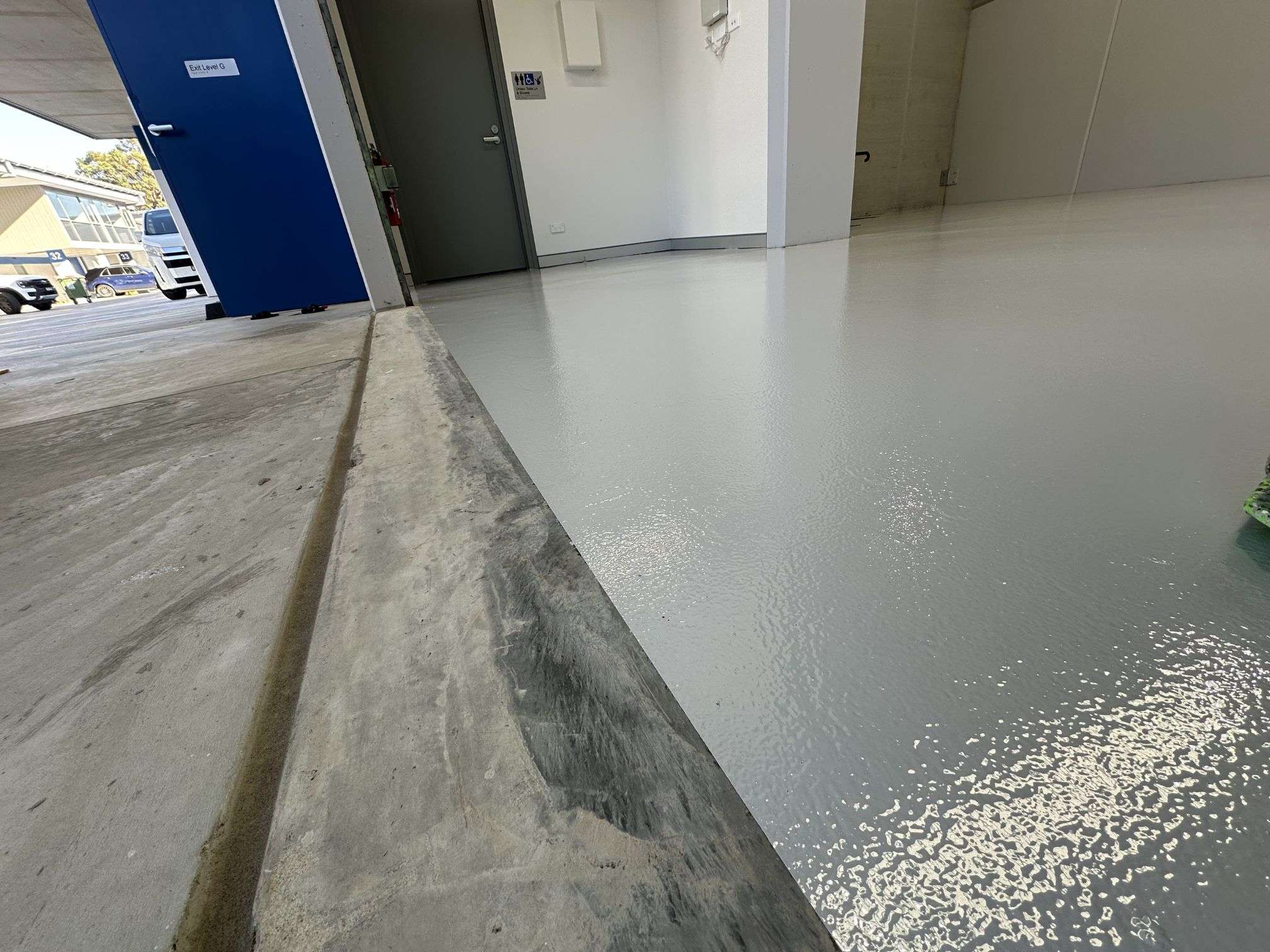

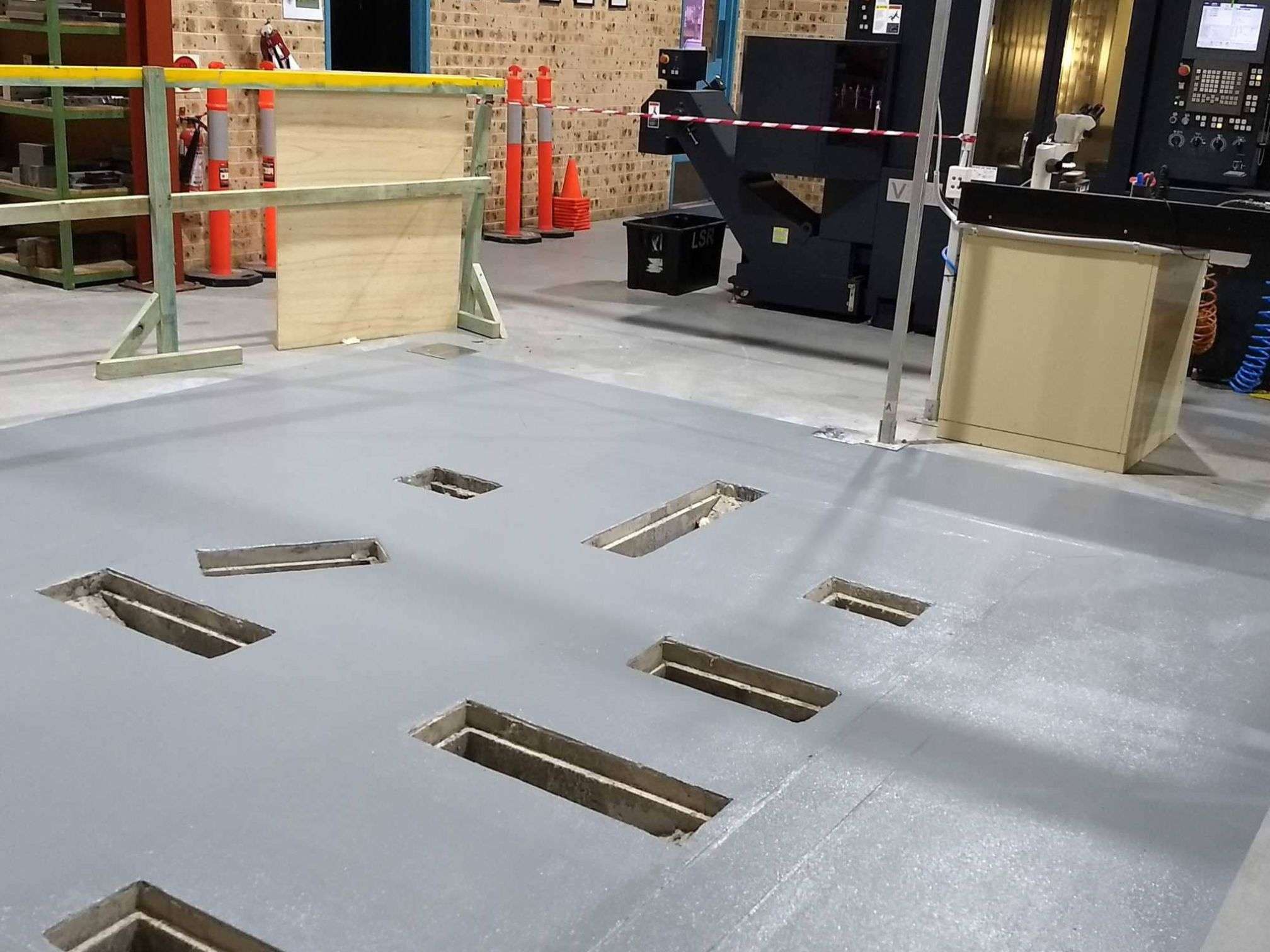

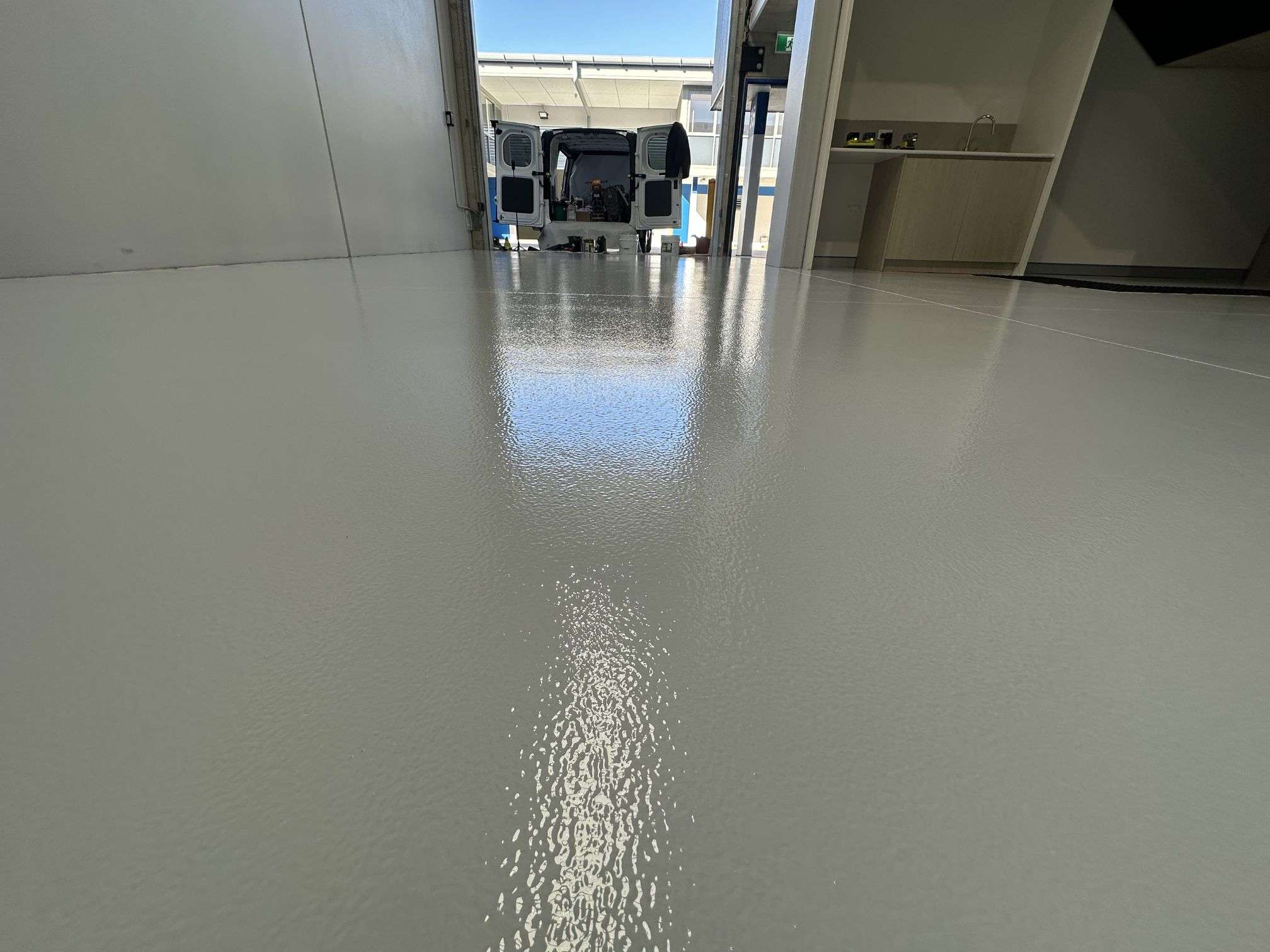

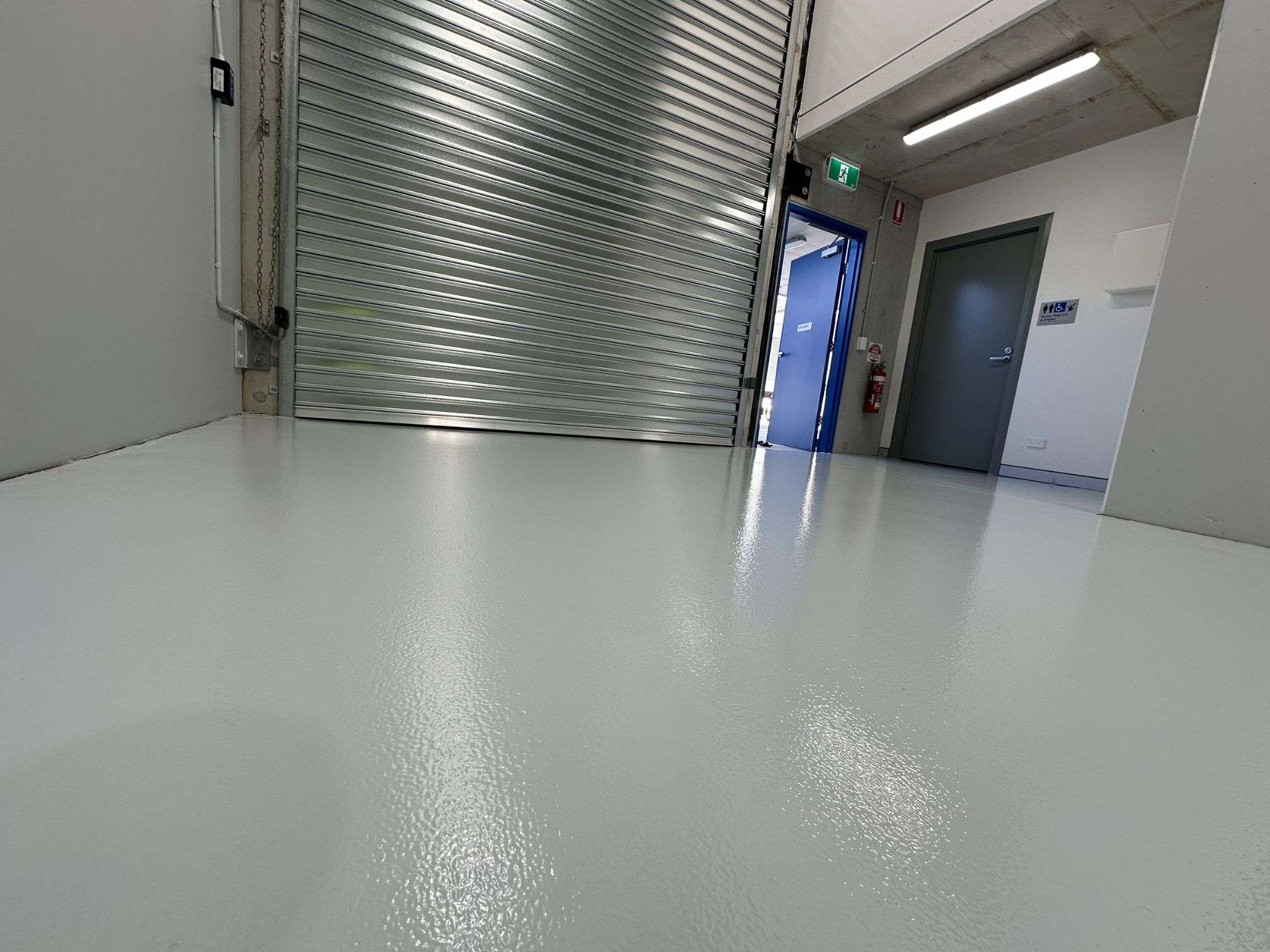

Recent ESD projects
Real installs and on-site testing across Sydney & NSW — tap any photo to enlarge and browse.
Why specifiers choose Atlas
Six reasons your floor passes, and keeps passing.
We test the finished floor and issue documented results — so you can close out compliance.
Conductive particles dispersed through the full film — no settled “dead spots”.

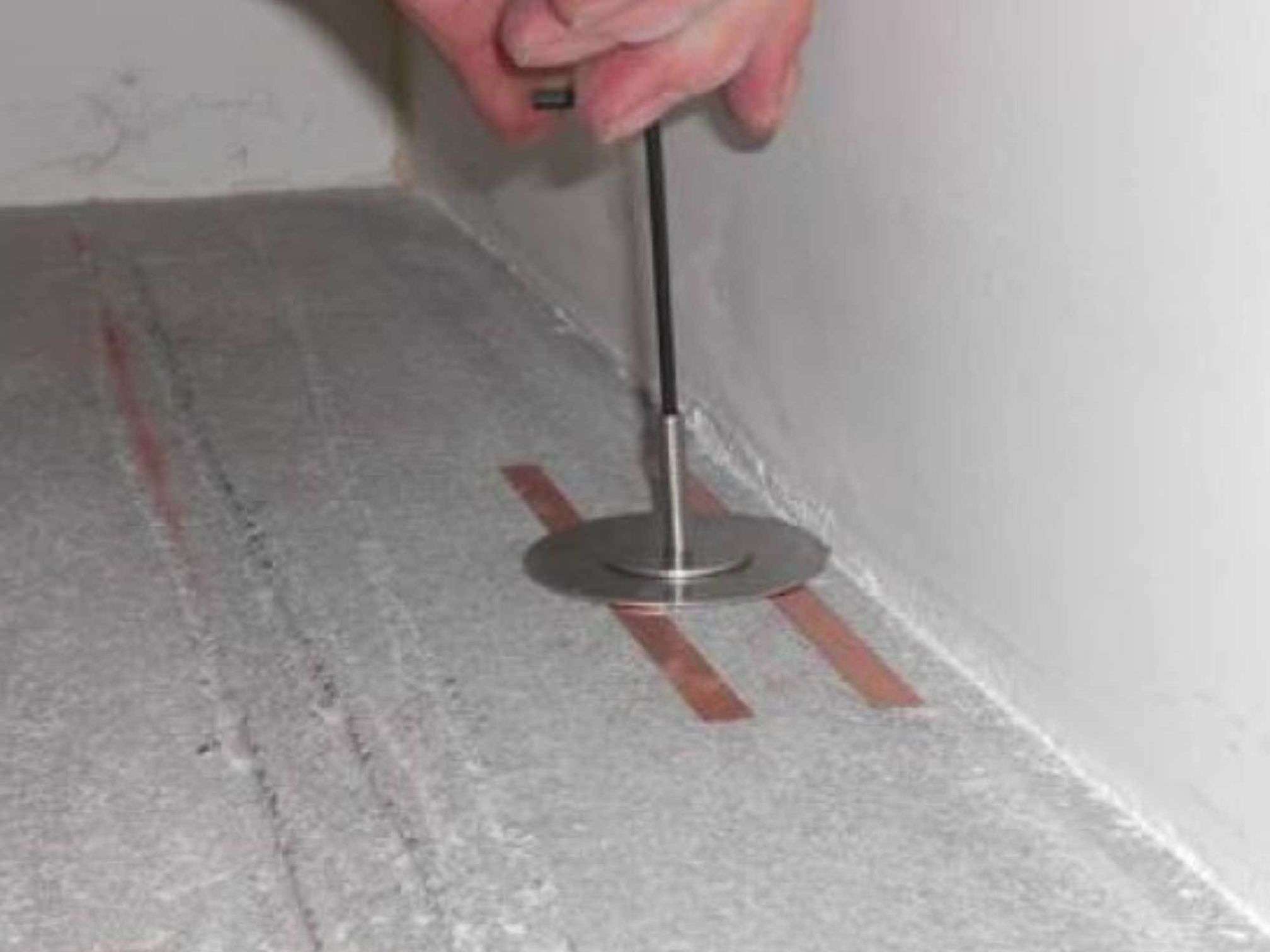

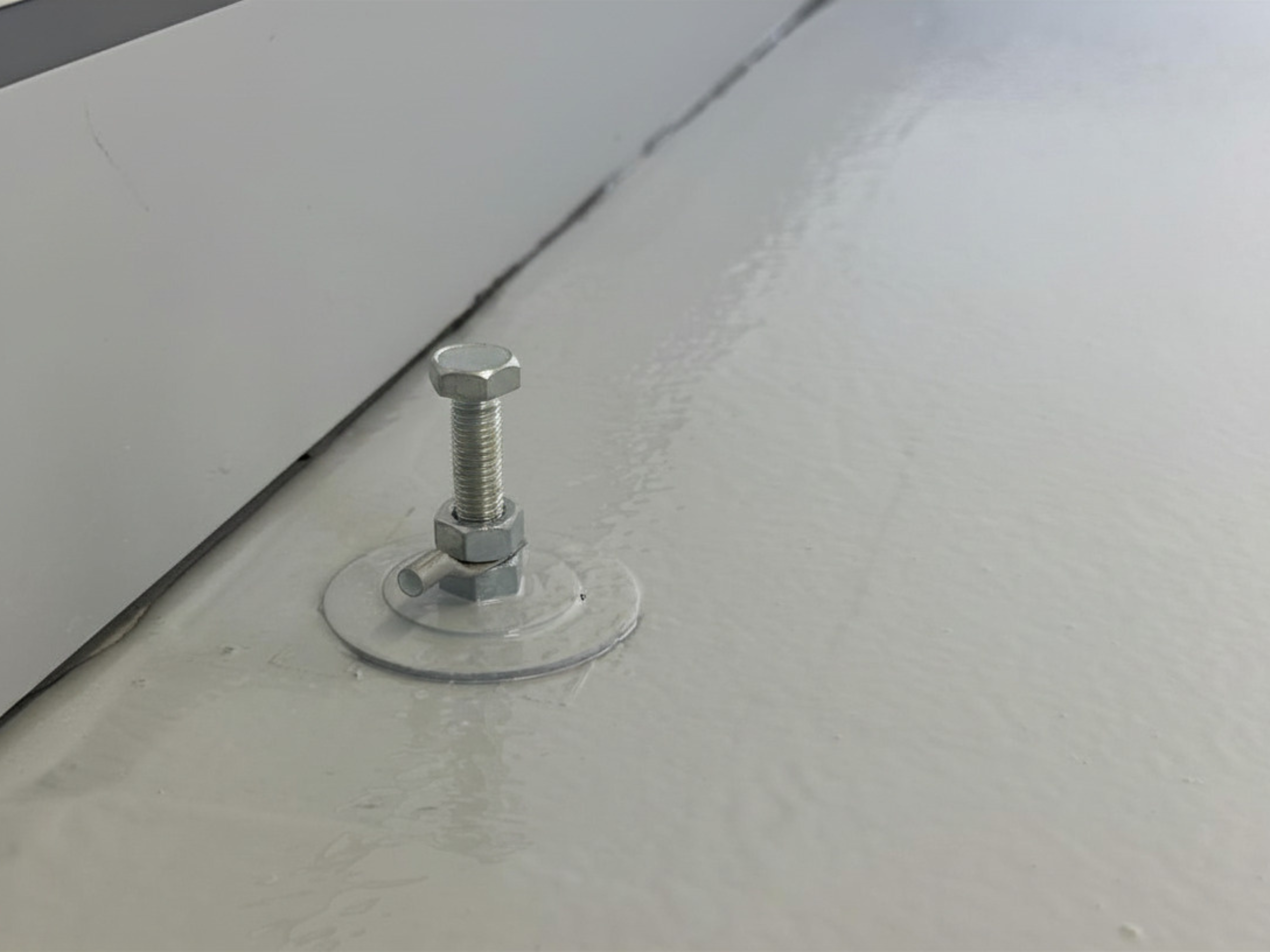

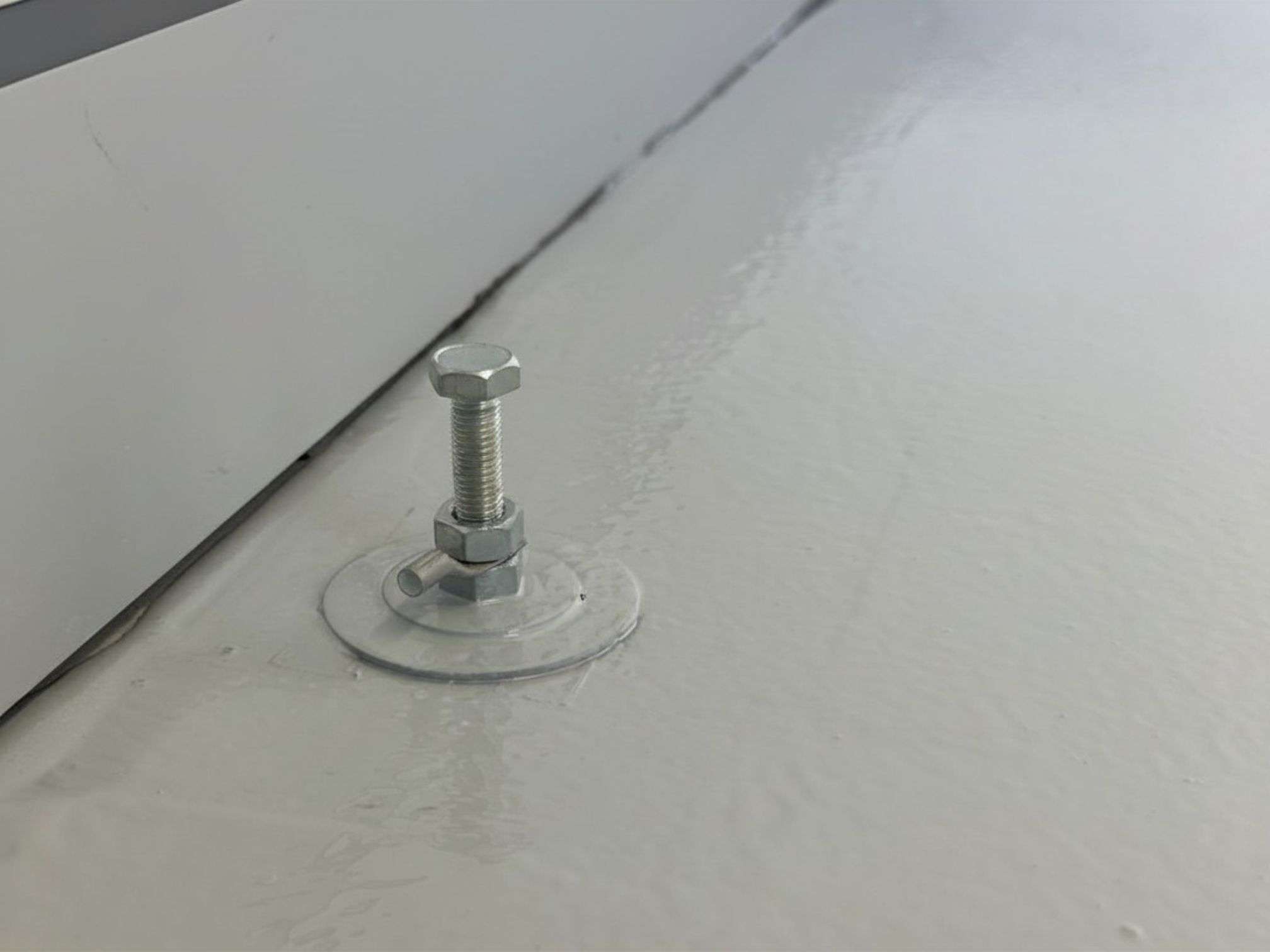

Minimum two copper earthing points per room, tied into your building earth.
Diamond grind to a CSP3 profile for a true mechanical bond — no peel, no delamination.
P3–P5 achievable without compromising charge dissipation.
After-hours and staged installs to work around uptime.
Our installation process
Five controlled stages, every job.
Floor prep
Diamond grind to a CSP3 profile for an optimal bond.
Primer & earthing
Epoxy primer + copper earthing points to building earth.
Conductive layer
Conductive primer establishes the grounding network.
ESD coat
Self-smoothing ESD epoxy + topcoat; anti-slip where specified.
Verification
Resistance testing against target; results documented.
Specifying or maintaining a static-sensitive facility?
We’ll measure your slab, recommend the right system for your standard, and document it.
Questions specifiers ask
Conductive systems measure ≤ 1.0 × 106 ohms to ground (most static-sensitive / explosive-atmosphere environments). Dissipative systems sit between 1.0 × 106 and 1.0 × 109 ohms (data centres, electronics, labs). We select the range for your control program.
IEC 61340-5-1 and ANSI/ESD S20.20 — both cap resistance-to-ground below 1.0 × 109 ohms and require personnel body voltage under 100 V. We test the finished floor to confirm compliance.
Yes. We measure the completed floor against the agreed target and provide documented results so you can close out compliance — we don’t just install and leave.
Yes — we offer after-hours and staged installations to work around uptime and operational requirements.
Book a site assessment & resistance test
Tell us about your site and we’ll measure your existing slab, recommend the correct conductive or dissipative system, and provide a documented specification and quote.
- Free, no-obligation assessment
- Documented spec to your standard
- Post-install testing + certificate
- Servicing Sydney, Central Coast, Newcastle, Wollongong
